Rear window wiper blade assembly
Subaru XV Crosstrek / Subaru XV Crosstrek 2011-2024 Owners Manual / Maintenance and service / Replacement of wiper blades / Rear window wiper blade assembly
1. Raise the wiper arm off the rear window.

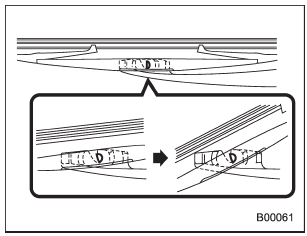

2. Turn the wiper blade assembly counterclockwise.

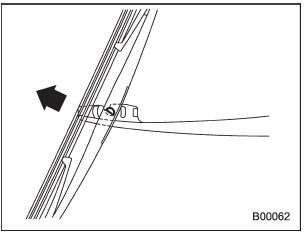

3. Pull the wiper blade assembly toward you to remove it from the wiper arm.
4. Install the wiper blade assembly to the wiper arm. Make sure that it locks in place.
5. Hold the wiper arm by hand and slowly lower it in position.
