Map light

Type A

1. Remove the lens by prying the edge of

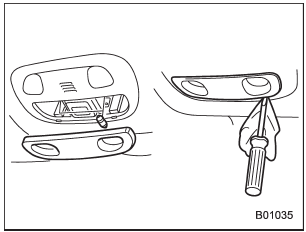

1. Remove the lens by prying the edge of the lens with a flat-head screwdriver.

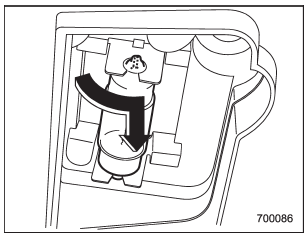

2. Turn the bulb until the flat surfaces at its ends are aligned vertically.


2. Turn the bulb until the flat surfaces at its ends are aligned vertically. Pull the bulb straight downward to remove it.

3. Install a new bulb.

4. Reinstall the lens.

Type B

1. Remove the lens by prying the edge of

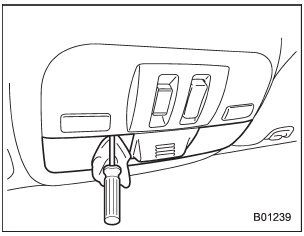

1. Remove the lens by prying the edge of the lens with a flat-head screwdriver.

2. Pull the bulb out of the socket.

3. Install a new bulb.

4. Reinstall the lens.
