Specifications

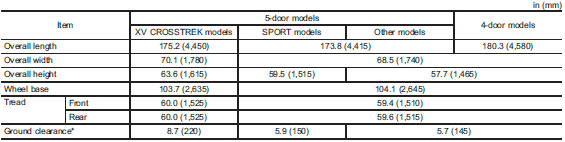

Dimensions
*: Measured with vehicle empty
Engine
Fuel
For more details, refer to “Fuel” F7-3.
Engine oil
For the checking, adding and replacing procedure or other details, refer to “Engine oil” .
NOTE
The procedure for changing the engine oil and oil filter should be performed by
a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.
Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

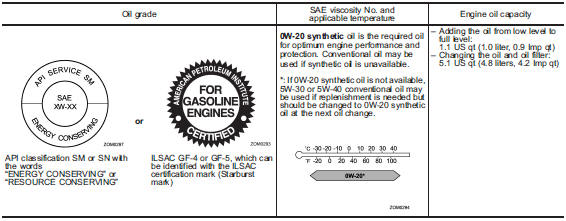

Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTE
Each quantity indicated here is only a guideline. The necessary quantity for
replacement may differ slightly depending on the
temperature and other factors.
Non-turbo models

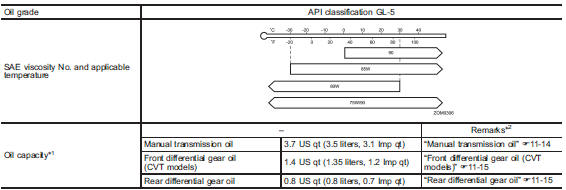

Manual transmission, front differential and rear differential gear oil
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
Fluids
*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.
*3: For more details about maintenance and service, refer to the indicated section.
Engine coolant
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. For more details about maintenance and service, refer to “Cooling system”.
Electrical system

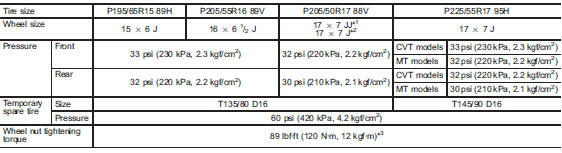

Tires
*1: “SPORT” and “SPORT-Ltd” models *2: Other vehicle models *3: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to “Changing a flat tire
