Illustrated index

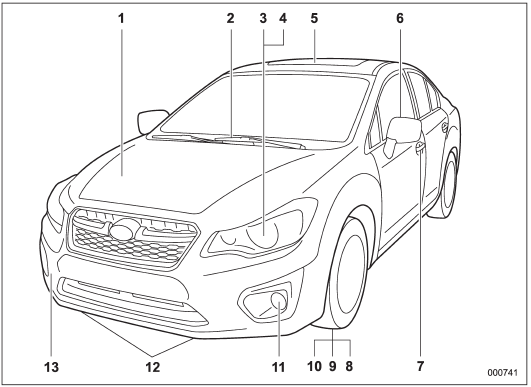

Exterior
1) Engine hood
2) Wiper switch
3) Headlight switch
4) Replacing bulbs
5) Moonroof
6) Outside mirrors
7) Door locks
8) Tire pressure
9) Flat tires
10) Snow tires
11) Fog light switch
12) Tie-down hooks
13) Towing hook

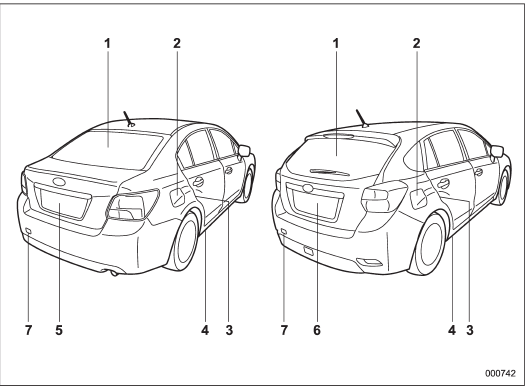

1) Rear window defogger
2) Fuel filler lid and cap
3) Child safety locks
4) Tie-down hole
5) Trunk lid
6) Rear gate
7) Towing hook
Interior

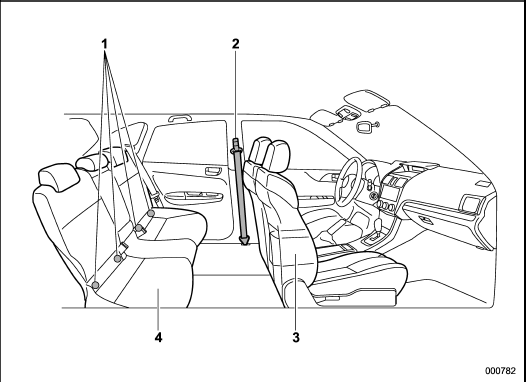

Passenger compartment area
1) Lower anchorages for child restraint
system
2) Seatbelt
3) Front seat
4) Rear seat

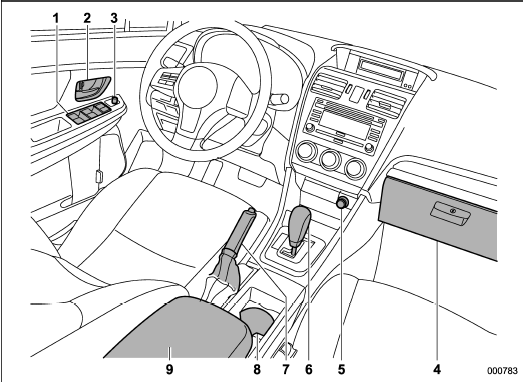

1) Power windows
2) Door locks
3) Outside mirror switch
4) Glove box
5) Front power supply socket
6) Shift lever (MT)/Select lever
(CVT)
7) Parking brake lever
8) Cup holder
9) Center console

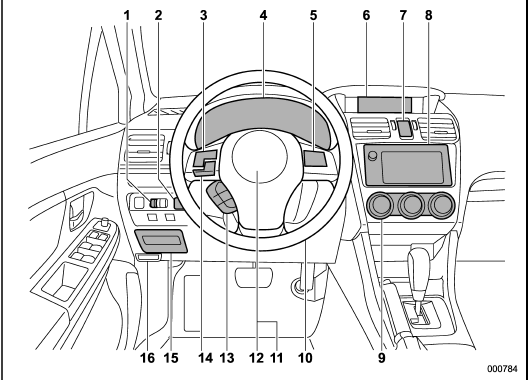

Instrument panel
1) Illumination brightness control
2) Vehicle Dynamics Control OFF switch
3) Audio control buttons
4) Combination meter
5) Cruise control
6) Information display/Multi
function display
7) Hazard warning flasher switch
8) Audio
9) Climate control
10) Tilt/telescopic steering
11) Horn
12) SRS airbag
13) Multi function display control switches
14) Hands-free switches
15) Fuse box
16) Hood lock release knob

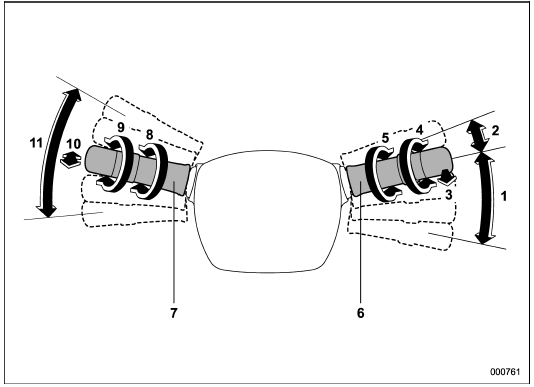

Light control and wiper control levers/switches
1) Windshield wiper
2) Mist
3) Windshield washer
4) Rear window wiper and washer switch
5) Wiper intermittent time control switch
6) Wiper control lever
7) Light control switch
8) Fog light switch
9) Headlight ON/OFF/AUTO
10) Headlight flasher High/Low beam
change
11) Turn signal lever

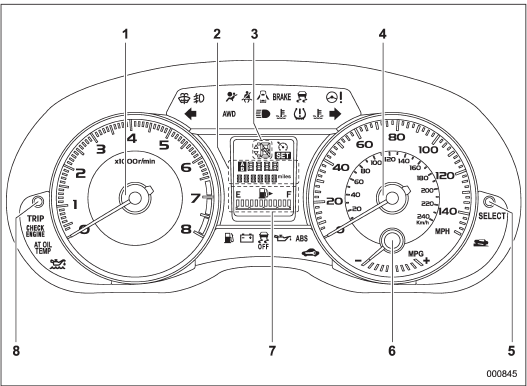

Combination meter
Combination meter
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
1) Tachometer
2) Trip meter and odometer
3) Select lever/gear position indicator
4) Speedometer
5) Information display selection knob
6) ECO gauge
7) Fuel gauge
8) Trip meter A/B selection and trip meter
reset knob

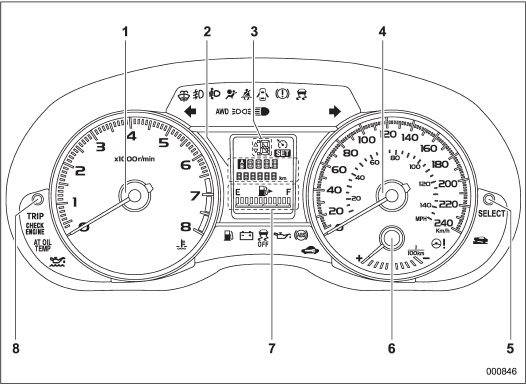

Except U.S.-spec. models
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
1) Tachometer
2) Trip meter and odometer
3) Select lever/gear position indicator
4) Speedometer
5) Information display selection knob
6) ECO gauge
7) Fuel gauge
8) Trip meter A/B selection and trip meter
reset knob

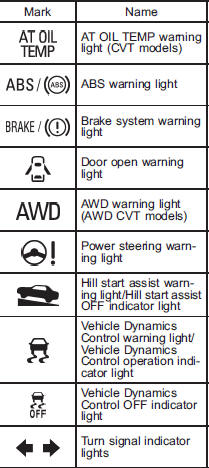

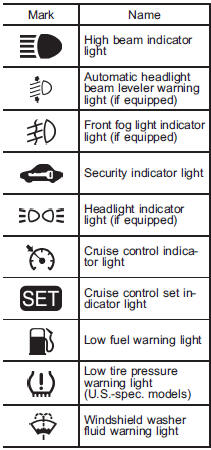

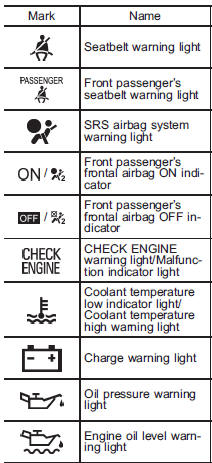

Warning and indicator lights

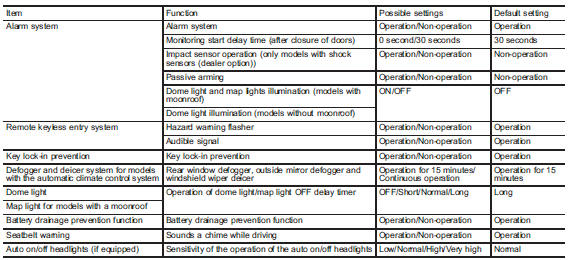

Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact the nearest SUBARU dealer for details. If your vehicle is equipped with a multi function display, the settings for some of these functions can be changed using the display. For details, refer to “Multi function display (Non-US vehicles only; if equipped)”.
