SUBARU advanced frontal airbag system
Your vehicle is equipped with a SUBARU advanced frontal airbag system that complies with the new advanced frontal airbag requirements in the amended Federal Motor Vehicle Safety Standard (FMVSS) No. 208.
The SUBARU advanced frontal airbag system automatically determines the deployment force of the driver’s SRS frontal airbag at the time of deployment as well as whether or not to activate the front passenger’s SRS frontal airbag and, if activated, the deployment force of the SRS frontal airbag at the time of deployment.
Your vehicle has warning labels on the driver’s and front passenger’s sun visors beginning with the phrase “EVEN WITH ADVANCED AIR BAGS” and a tag attached to the glove box lid beginning with the phrase “Even with Advanced Air Bags”. Make sure that you carefully read the instructions on the warning labels and tag.
Always wear your seatbelt. The SUBARU advanced frontal airbag system is a supplemental restraint system and must be used in combination with a seatbelt. All occupants should wear a seatbelt or be seated in an appropriate child restraint system.
The driver’s SRS frontal airbag is stowed in the center portion of the steering wheel.
The front passenger’s SRS frontal airbag is stowed near the top of the dashboard under an “SRS AIRBAG” mark. Also, the driver’s knee airbag is stowed in the bottom of the steering column.
In a moderate to severe frontal collision, the following components deploy.
● SRS frontal airbag for driver ● SRS frontal airbag for front passenger ● Knee airbag for driver
These components supplement the seatbelts by reducing the impact to the occupant’s head, chest and knees.
WARNING
NEVER INSTALL A REARWARD FACING
CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD
TOO CLOSE TO THE SRS AIRBAG.
WARNING

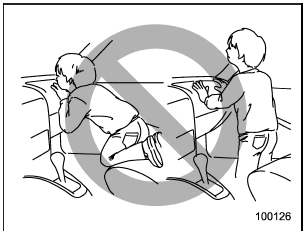

Never allow a child to stand up, or to
kneel on the front passenger’s seat.
The SRS airbag deploys with considerable force and can injure or even kill the child.
WARNING

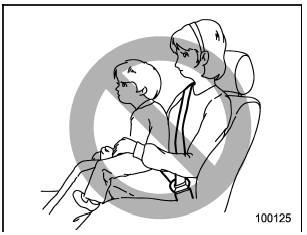

Never hold a child on your lap or in
your arms. The SRS airbag deploys
with considerable force and can
injure or even kill the child.
WARNING

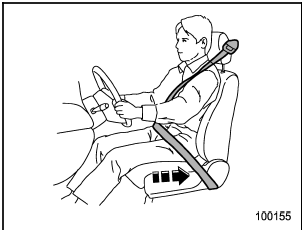

The SRS airbag deploys with considerable
speed and force. Occupants
who are out of proper position
when the SRS airbag deploys could
suffer very serious injuries. Because
the SRS airbag needs enough
space for deployment, the driver
should always sit upright and well
back in the seat as far from the
steering wheel as practical while
still maintaining full vehicle control
and the front passenger should
move the seat as far back as
possible and sit upright and well
back in the seat.
It is also important to wear your seatbelt to help avoid injuries that can result when the SRS airbag contacts an occupant not in proper position such as one thrown toward the front of the vehicle during preaccident braking.
WARNING

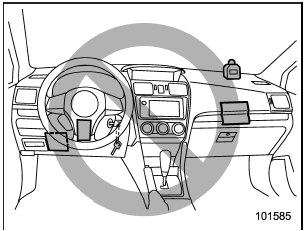

● Do not put any objects over the
steering wheel pad and dashboard.
If the SRS frontal airbag deploys, these objects could interfere with its proper operation and could be propelled inside the vehicle, causing injury.
● Do not put any objects under the driver’s side of the instrument panel. If the knee airbag deploys, those objects could interfere with its proper operation and could be propelled inside the vehicle, causing injury.
● The key must not be attached to heavy, sharp or hard accessories, or another key. If the knee airbag deploys, those objects could interfere with its proper operation and could be propelled inside the vehicle and cause injury.
WARNING

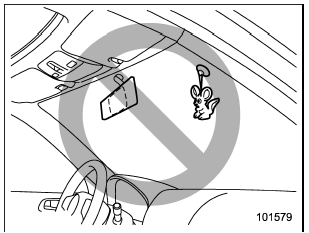

Do not attach accessories to the
windshield, or fit an extra-wide mirror
over the rear view mirror. If the
SRS airbag deploys, those objects
could become projectiles that could
seriously injure vehicle occupants.
