CAUTION
● Do not let dust, oil or water get on or in the transmitter when replacing the battery.

● Be careful not to damage the printed circuit board in the transmitter when replacing the battery.

● Be careful not to allow children to touch the battery and any removed parts; children could swallow them.

● There is a danger of explosion if an incorrect replacement battery is used. Replace only with the same or equivalent type of battery.

● Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

When the transmitter battery begins to get weak, transmitter range will begin to decrease. Replace the battery as soon as possible.

To replace the battery:

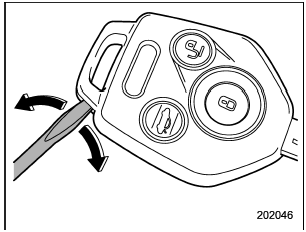

1. Open the key head using a flat-head screwdriver.

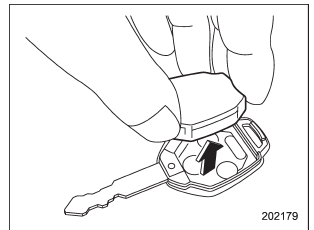

2. Remove the transmitter case from the key head.

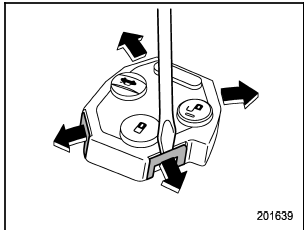

3. Open the transmitter case by releasing the hooks.

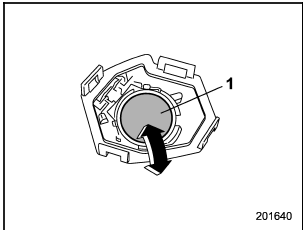

1) Negative (−) side facing up

4. Replace the old battery with a new battery (type CR1620 or equivalent) making sure to install the new battery with the negative (−) side facing up.

5. Put together the transmitter case by fitting the hooks on the case.

6. Reinstall the transmitter case in the key head.

7. Refit the removed half of the key head.

After the battery is replaced, the transmitter must be synchronized with the remote keyless entry system’s control unit. Press either the “ ” or “
” button six times to synchronize the unit.
