Canceling the function for meter/gauge needle movement upon turning on the ignition switch

Subaru XV Crosstrek / Subaru XV Crosstrek 2011-2024 Owners Manual / Instruments and controls / Meters and gauges / Canceling the function for meter/gauge needle movement upon turning on the ignition switch

It is possible to activate or deactivate the movement of the meter needles and gauge needles that takes place when the ignition switch is turned to the “ON” position. To change the setting, perform the following procedure.

1. Turn the ignition switch to the “LOCK” or “ACC” position.

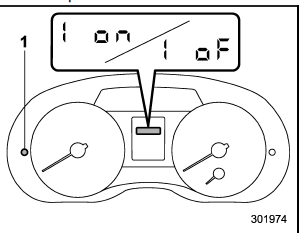

1) Trip knob


1) Trip knob

2. Press the trip knob to show “ or”
or “The display can be switched as shown in ” on the trip meter display.


The display can be switched as shown in the following sequence by pressing the trip knob.

*: They cannot be displayed when the


*: They cannot be displayed when the ignition switch is in the “ON” position.

To change the current setting, press the trip knob for at least 2 seconds.

: Deactivated: Activated
NOTE: Deactivated


NOTE
● Your vehicle’s initial movement setting of the meter/gauge needles has been set for activation “

at”
at the time of shipment from the factory.

● It is not possible to change the initial movement setting of the meter/gauge needles when the ignition switch is in the “ON” position. Change the setting when the ignition switch is in the “LOCK” or “ACC” position.
