NOTE
● SPEED VOLUME CONTROL (SVC) is a function that automatically adjusts the volume according to the vehicle speed. As the vehicle speed increases, the audio volume automatically increases to match the vehicle speed, in order to create a pleasant listening environment even as the driving noise increases.

● For type B audio, SRS TruBass and FOCUS are equipped.

● SRS Sound features: (1) Sound originating from door mount speakers can be heard at ear level (built in SRS FOCUS effect) (type B audio).

(2) Ultra rich bass sound can be obtained from standard door mount speakers (built in SRS TruBass effect) (type B audio).

● TruBass, FOCUS, SRS and “ ” symbol are trademarks of SRS Labs, Inc.

● TruBass and FOCUS technologies are incorporated under license from SRS Labs, Inc.

Tone and balance control (type A audio)

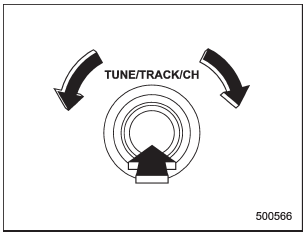

Each brief press of the “TUNE/TRACK/ CH” dial changes the control modes in the following sequence.

Choose the preferred level for each mode by turning the “TUNE/TRACK/CH” dial.

The control function returns to the tune/ track/channel control mode after approximately 5 seconds.

Other settings (type A audio)

Each brief press of the “MENU” button changes the control modes in the following sequence.

Choose the preferred settings for each mode by turning the “TUNE/TRACK/CH” dial.

The control function returns to the tune/ track/channel control mode after approximately 5 seconds.

Audio settings (type B audio)

1. Press the “TUNE/TRACK/CH” dial to display “SETTING Menu”.

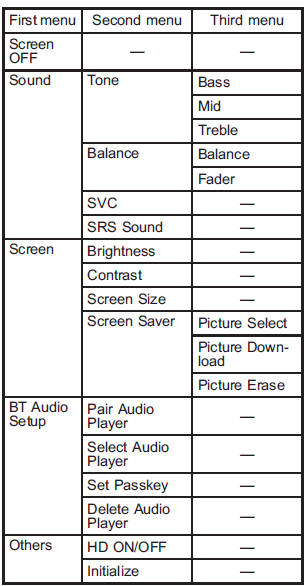

2. Operate the “TUNE/TRACK/CH” dial to select the preferred menu. You can select the menu as shown in the following chart.

3. Operate the “TUNE/TRACK/CH” dial to select the preferred setting for each mode.

NOTE
Only “Screen OFF” can be displayed while driving.

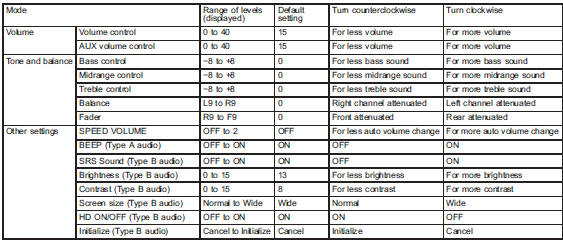

Adjustable level of each mode
