Type A audio:

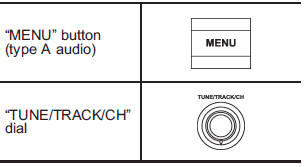

1. Select the “BT-A SETUP” menu by pressing the “MENU” button. For details, refer to “Other settings (type A audio)”.

2. Perform the following procedure by operating the “TUNE/TRACK/CH” dial while “BT-A” is displayed.

Type B audio:

1. Select the “BT Audio Setup” menu by operating the “TUNE/TRACK/CH” dial. For details, refer to “Audio settings (type B audio)”.

2. Perform the following procedure by operating the “TUNE/TRACK/CH” dial while “BT Audio” is displayed.

NOTE
You cannot set Bluetooth® audio while driving.

Registering (pairing) device

NOTE
Only one device can be registered.

1. Select the following menu.

– “PAIR AUDIO” (type A audio) – “Pair Audio Player” (type B audio) If a device is already registered, “MEMORY FULL” is displayed and the mode changes to the Bluetooth® audio setting mode.

2. After the passkey is shown on the display, input the passkey into the device.

– If you input the correct passkey, “PAIRED” is displayed and the registration procedure is finished.

– If you input an incorrect passkey, “FAILED” is displayed, the registration procedure was not successful and the mode changes to th

NOTE
After the ignition switch is turned to the “LOCK” position, the registered device is not automatically connected to the system even if the ignition switch is turned to the “ACC” or “ON” position.

Selecting device

1. Select the following menu.

– “SELECT AUDIO” (type A audio) – “Select Audio Player” (type B audio)

If no devices are registered, “EMPTY” is displayed and the mode changes to the Bluetooth® audio setting mode.

2. Select the “CONFIRM” menu.

– If the device is connected, “SELECTED” is displayed and the selecting procedure is finished.

– If the device cannot be connected, “FAILED” is displayed and the selecting procedure was not successful.

Setting passkey

1. Select the “SET PASSKEY” menu.

– After the currently set passkey is displayed, a new passkey can be entered.

2. Input the new passkey by operating the “TUNE/TRACK/CH” dial.

3. Select the “CONFIRM” menu.

– The new passkey is displayed, the passkey is changed and the mode changes to the Bluetooth® audio setting mode.

Deleting device

1. Select the following menu.

– “DELETE AUDIO” (type A audio)

– “Delete Audio Player” (type B audio)

If no devices are registered, “EMPTY” is displayed and the mode changes to the Bluetooth® audio setting mode.

2. Select the “CONFIRM” menu.

– “DELETED” is displayed and the mode changes to the Bluetooth® audio setting mode.
