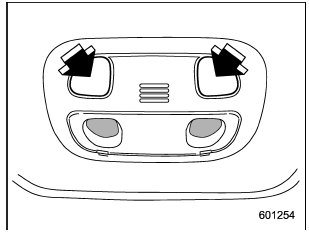

Type A

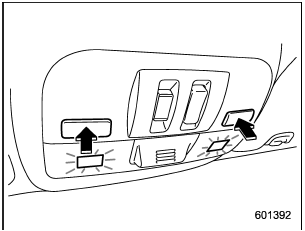

Type B

To turn on the map light, push the switch.

To turn it off, push the switch again.

When leaving the vehicle, make sure the lights are turned off to avoid battery discharge.

NOTE
For the type A map lights, although the light switches are in the ON position, the lights are automatically turned off after approximately 30 seconds of illumination to prevent the vehicle battery from discharging. For details, refer to “Battery drainage prevention function”

Automatic illumination (models with moonroof)

The map lights illuminate automatically in the following cases.

● Any of the doors other than the rear gate is opened. (The map lights do not illuminate when only the rear gate is opened.)
● The doors are unlocked using the remote keyless entry transmitter.

● The ignition switch is turned from the “ACC” position to the “LOCK” position.

The automatically illuminated map lights remain on for several seconds and then gradually turn off after all doors are closed.

While the lights are on, if any of the following operations are performed, the map lights turn off immediately.

● The ignition switch is turned from the “LOCK” position to the “ACC” or “ON” position.

● All doors and the rear gate (5-door) are locked using the remote keyless entry transmitter.

The setting of the period for which the lights remain on (OFF delay timer) can be changed by a SUBARU dealer. Consult your SUBARU dealer for details. Also, for models with a multi function display, the setting can be changed using the display.

For details, refer to “Multi function display (Non-US vehicles only; if equipped)”
