Stowage of the cargo area cover

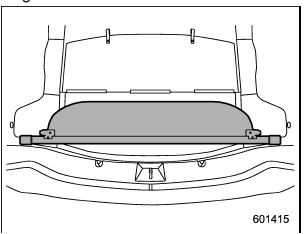

The cargo area cover can be stowed in under the cargo floor.

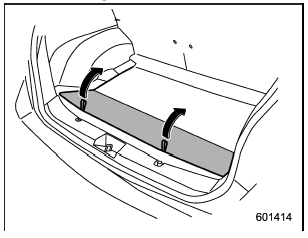

1. Raise and fold the rear end of the

1. Raise and fold the rear end of the cargo floor board.

2. Stow the cover housing in the cargo

2. Stow the cover housing in the cargo area end.

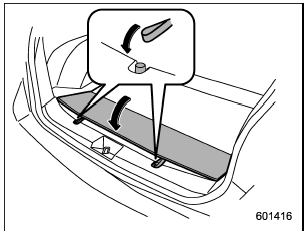

3. Put the cargo floor board back while

3. Put the cargo floor board back while hanging two retaining straps on the hooks that are located on the rear wall of cargo area.
